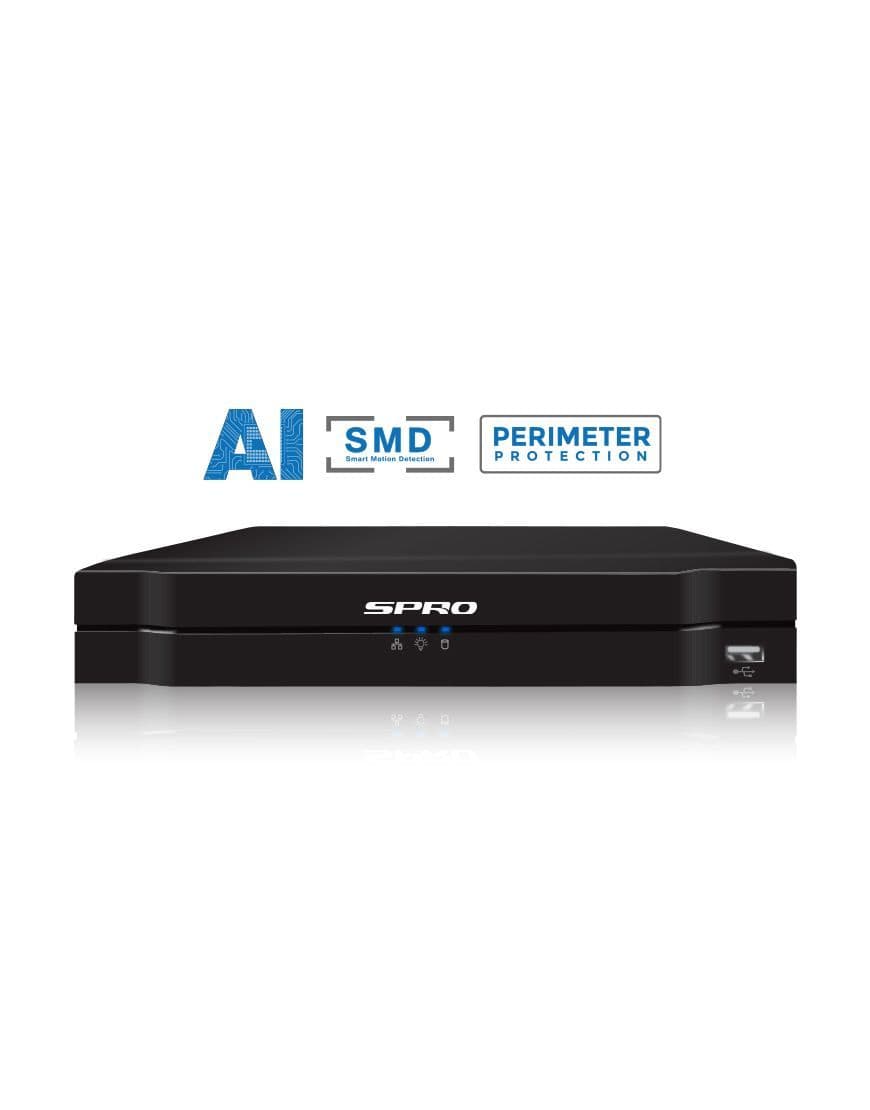

SPRO A5 8 Channel 8MP 1TB

The A5 range of IP NVRs can record up to 4K (8mp) on each channel. They have Audio Over Cat5e as standard, so can record audio on each channel with compatible cameras, and supports PTZ control over Cat5e with compatible PTZs. On-board POE also means you can use the one network cable to power your SPRO IP camera. Product Price is Excluding Vat
Model Number DHIPNVR08-A5
Main Processor Industrial-grade embedded processor
Operating System Embedded Linux
Operation Interface Web; local GUI
AI by Camera Face detection; face recognition; perimeter protection; SMD Plus
AI by NVR Face detection; face recognition; perimeter protection; SMD Plus
Resolution 12MP/ 8M/ 5M/ 4M/ 3M/ 2M/ 720p/ D1
Perimeter Protection
Perimeter Performance AI
by NVR(Number of Channels)
Perimeter Performance of AI
by Camera (Number of Channels)
Face Detection
Face Attributes 6 attributes: Gender; age group (6); glasses; expressions (8);
mouth mask; beard
Face Detection Performance
of AI by NVR (1080P)
(Number of Channels)
1 (up to 12 face images/second)
Face Detection Performance
of AI by Camera
(Number of Channels)
Face Recognition
Face Database Capacity Up to 10 face databases with 5,000 images
Face Recognition Performance
of AI by NVR (1080P)
(Number of Channels)
1 (up to 4 face images/second)
Face Recognition Performance
of AI by Camera
(Number of Channels)

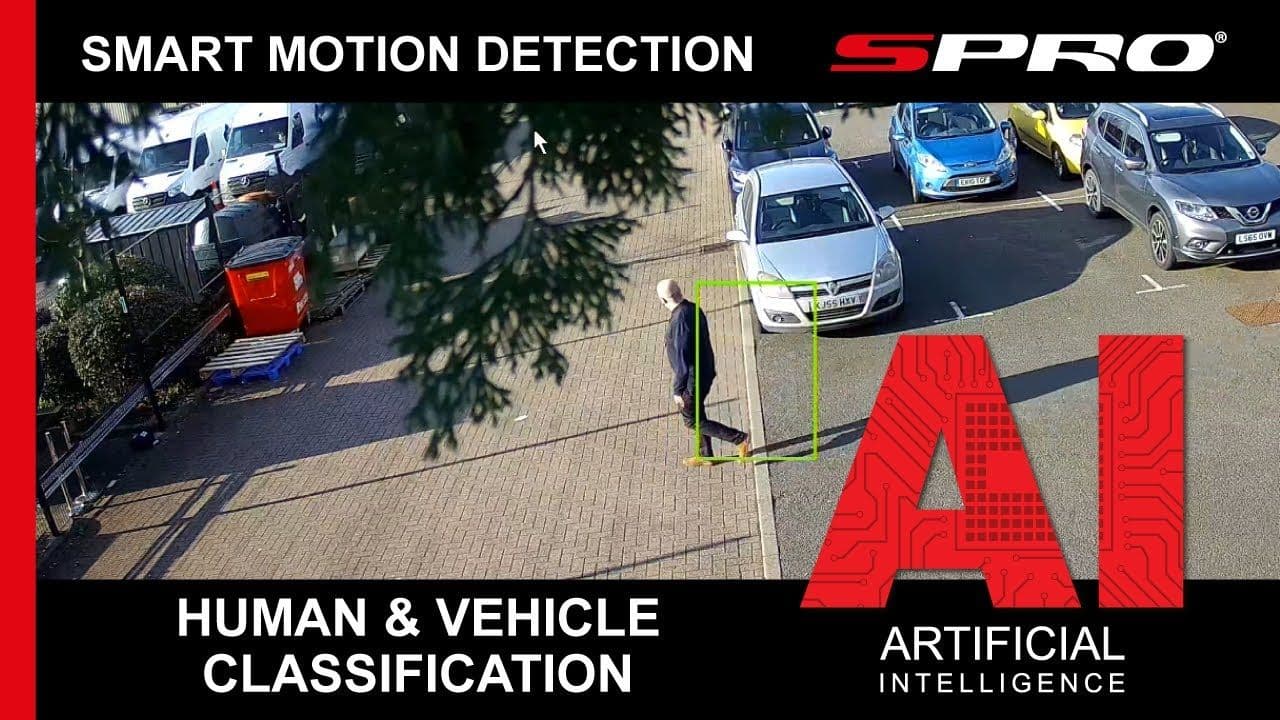

SMD Plus
SMD Plus by NVR 4 channel
SMD Plus by Camera 6-channel SMD Plus (AI by camera): filters false alarms caused by leaves,
raindrops and change of brightness
Network Bandwidth AI off: Access: 144 Mbps; Storage: 144 Mbps; Forward: 72 Mbps
AI on: Access: 72 Mbps; Storage: 72 Mbps; Forward: 36 Mbps
Resolution 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1
Decoding Capability AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps;
2-channel 5MP@30 fps; 3-channel 4MP@30 fps;
6-channel 1080p@30 fps
AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps;
2-channel 4MP@30 fps;
4-channel 1080p@30 fps
Video Output 1 × VGA, 1 × HDMI (simultaneous)
Multi-screen Display 1, 4, 8, 9 views
Third Party Camera Access Onvif
Video  Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio PCM; G711A; G711U; G726
IP Filter; DDNS; Alarm Server; IP Search ; P2P;Auto Registration
Mobile Phone Access Android; iOS
Interoperability ONVIF ( Profile T; profile S; profile G ); CGI; SDK
Browser Chrome; IE9 or later; Firefox
Record Playback
Multi-channel Playback Up to 8 channels
Record Mode Manual record; alarm recordings; motion detection recordings;
scheduled recordings
Storage Local HDD and network
Backup USB Device
Playback Function 1. Play; pause; stop; fast forward; fast backward; rewind;
play by frame
2. Full screen; backup (vide clip/file); partially zom in; audio on/off
General Alarm Motion detection; privacy masking; video loss; PIR alarm; IPC alarm
Anomaly Alarm Camera offline; storage error; disk full; IP conflict; MAC conflict;
login lock; cyber security exception
Intelligent Alarm Face detection; face recognition; perimeter protection
(intrusion and tripwire); IVS; SMD Plus
Alarm Linkage Recording; snapshot; buzzer; log; preset; email; tour
External Port
HDD 1 SATA port, up to 10 TB. The maximum HDD capacity varies
with environment temperature
USB 1 × front USB2.0; 1 × back USB2.0
HDMI 1 (max. resolution: 4K)
Network 1x RJ-45, 10/100/1000 Mbps
PoE 8x PoE ports, 10/100 Mbps
RCA Input 1
RCA Output 1
General Parameter
Power Supply 53VDC, 1.8A
Power Consumption Total output of NVR is ≤ 10W (without HDD)Total output power
of PoE is 72W, the maximum output power of asingle port is 25.5W
Net Weight 0.92 kg (2.03 lb)
Gross Weight 2.07 kg (4.56 lb)
Product Dimensions 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10%–93%
Storage Humidity 30%–85%
Operating Altitude 3,000 m (9,842.52 ft)
Installation Desktop
Certifications FCC:47 CFR FCC Part15,SubpartB,Class A
CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;
EN 55035:2017;EN 50130-4:2011+A1:2014
CE-LVD:EN 62368-1:2014+A11:20171234678951Power

Click here to Download Data Sheet
