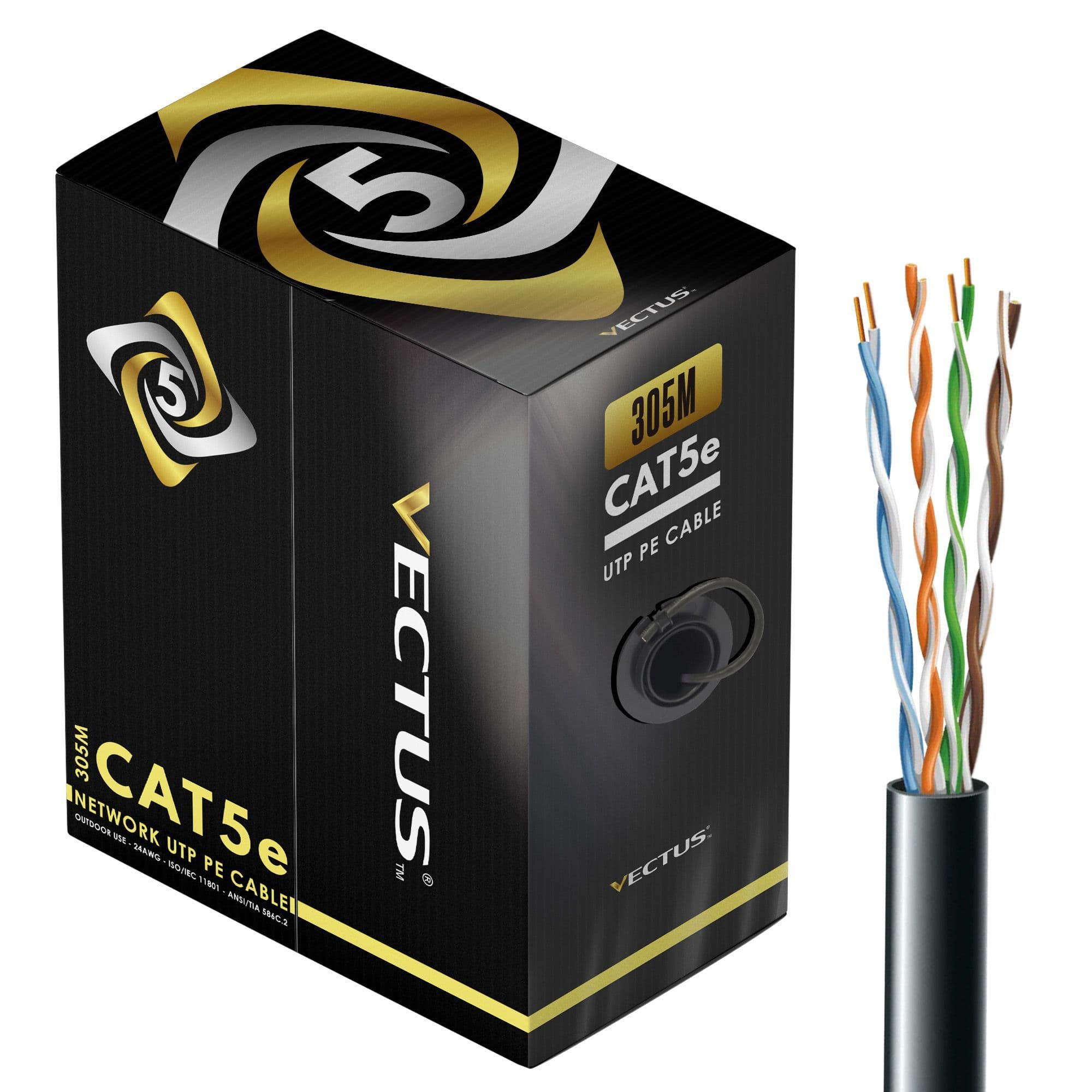

VECTUS CAT5e 305M Cable UTP PE, Outdoor (Black) cat5 cctv cable

Product Description

Specifications:
Model Number CAT5PE-305-B
Category U/UTP CAT5E-4P-PE
Reference Standard ISO/IEC11801, TIA-568-C.2
Conductor
Material Solid Copper Core
Nom.O.D. 0.480; Up: +0.005; Down: -0.005
Insulation
Material  DHPE
Diameter 0.83±0.05mm
Sheath
Thickness 0.55 ± 0.05 mm
External O.D.

5.0 ± 0.4 mm
Surface

Clean, Flap, Satiation
Material

LDPE (Complies RoHS)
Colour

Black
Surface Printing
Letter height 3.0 ± 0.3 mm
Colour White
Print error & Space ≤±0.5%，1m
Colour  Black
Core Colour
Colour

8-core, Blue, white/blue; orange, white/orange; green, white/green;

brown, white/brown
Packaging
Length 305m (1000 ft) ± 1.5 m (4.92 ft)
Packaging Dimensions 360mm × 360mm × 205mm (14.17" × 14.17" ×8.07") (L × W × H)
Packaging Method

305 m (1000.66 ft) a carton one protection carton

with 2 cartons inside
Net Weight 7kg±0.6kg (22 lb±1.32lb)
Gross Weight 7.5kg±0.6kg (24.20 lb±1.32lb)
Rip Cord
Rip Cord Yes
Drain Wire No
Sheath Physical Properties
Before Aging Tensile Strength (Mpa) ≥10.0
Before Aging Elongation (%)  ≥350
Aging Period (°C x hrs) 100°C x 24h x 10d
After Aging Elongation (%) ≥300
Cold bend (-20±2°Cx4h) 8 x Cable O.D., No Visible cracks
Electrical Characteristics (20°C)
1.0-100-0MHz Impedance (Ω) 100 ± 15
1.0-100-0MHz Delay Skew (ns/100m) ≤45
DC Resistance (Ω/100m) max  11.0
DC Conductor Resistance Unbalance (%) max 5.0
Certifications
Certifications

Category 5E, 4-pair, 24 AWG, U / UTP, PE; ISO / IEC 11801 - 1 : 2017

EN 50173 - 1 : 2018 / EN 50173 - 2 : 2018; ANSI / TIA 568 - D : 2015

EN 50575 : 2014 + A1 : 2016;

RoHS 2.0 : ( 2011 / 65 / EU & 2015 / 863 ) : 2023

Specifications

Manufacturer Product Code
CAT5PE-305-B
Manufacturer
SPRO
Brand
SPRO
Product Code
CAT5E305MEXT

Customer reviews

No reviews left yet
Write A Review

Customer Reviews

VECTUS CAT5e 305M Cable UTP PE, Outdoor (Black)

Product Code CAT5E305MEXT

Designed to withstand the elements, the VECTUS CAT5e Outdoor Cable is engineered with a robust PE external grade sheath and premium solid core copper for quality performance, maintaining efficiency in regular scenarios.

The 305-meter length, conveniently marked for easy installation, ensures coverage for extensive networking needs.

Adhering to ANSI/TIA 568-c.2 and EN 50575:2014+A1:2016 standards, with a fire reaction classification of Fca, this cable promises reliability and safety for outdoor applications.

Key Features

•CAT5 solid copper core cable
• HDPE
• 24AWG
• Metre marked
• Outer sheath colour: Black
• Reaction to fire: Fca
